Supply voltage
12-30 VDC
FG INOX / FGHJ INOX
12-30 VDC
HTL or TTL
1 bis 2048 (set ex works, selectable)
0°, 90°, N and inverted signals
Solid shaft / hollow shaft: up to 6000 rpm / 200 kHz
-25 °C to +85 °C
up to IP66
up to 100 g (solid shaft) / up to 40 g (hollow shaft)
up to 10 g (solid shaft) / up to 4 g (hollow shaft)
approx. 3.5 kg
UL/CSA
Take a look at our animations for the steel, crane and port technology, and mining sectors! Click through our animations from a rough overview to the specific mounting location of an encoder and get direct suggestions for suitable encoder solutions.

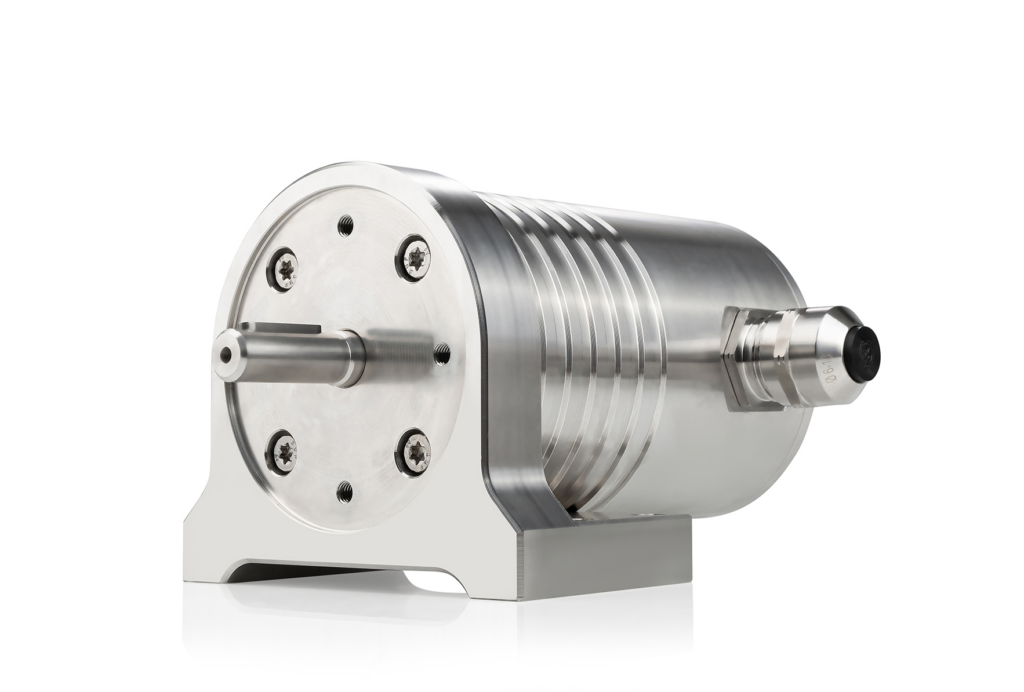

The housing of the incremental rotary encoder series FG(HJ) INOX consists of seawater-resistant V4A stainless steel and is resistant to acids and alkalis. The encoders can be used permanently under the influence of aggressive media, e.g. in heavy industry or in the offshore sector.
FG(HJ) INOX: incremental rotary encoders for particularly harsh operating conditions
Reliable
The incremental rotary encoders of the FG(HJ) INOX series work reliably even under extreme conditions and ensure high system availability. This avoids failures and downtimes.
Safe
Embedded in an extremely robust, thick-walled housing made of V4A stainless steel, the modern electronics of the incremental rotary encoders are characterized by electromagnetic compatibility (EMC).
Tailor-made
The incremental rotary encoders of the FG(HJ) INOX series can be adapted to the respective area of application.
Comfortable
The incremental rotary encoders of the FG(HJ) 40 series can be integrated into existing mounting situations and plc systems. Engineering support and a wide range of mechanical accessories ensure precise assembly, even in difficult mounting locations.
We look forward to your challenges.
