Supply voltage
12-30 VDC
FG 2 / FGHJ 2
12-30 VDC
HTL or TTL
1 – 2048, 4096 – others on request
0°, 90°, N and inverted signals
-25 °C to +85 °C
IP66
up to 20 g
up to 200 g
approx. 2 kg

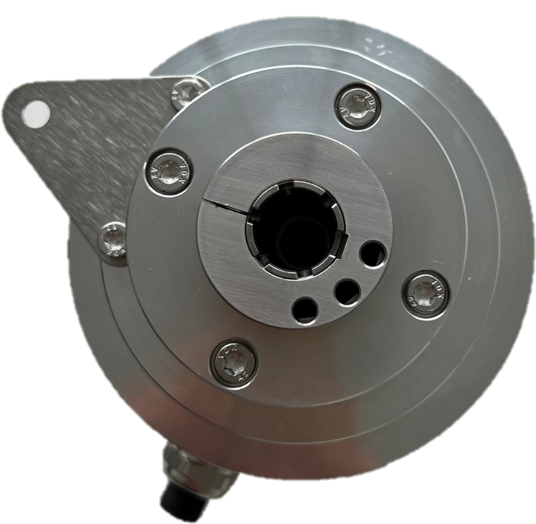

Hollow shaft devices: Torque bracket (on request)
UL/CSA
Download
Download
Take a look at our animations for the steel, crane and port technology, and mining sectors! Click through our animations from a rough overview to the specific mounting location of an encoder and get direct suggestions for suitable encoder solutions.
The incremental optical encoders FG 2 (solid shaft) and FGHJ 2 (hollow shaft) ensure reliable speed measurement of secondary, auxiliary and standard drives. With their short-term availability and their additional options, they can be used in a variety of ways and are also suitable as a simple replacement solution for optical encoders from other manufacturers.
FG(HJ) 2: optical encoders for standard drives
The optical encoders of the FG(HJ) 2 series work reliably and ensure high system availability.

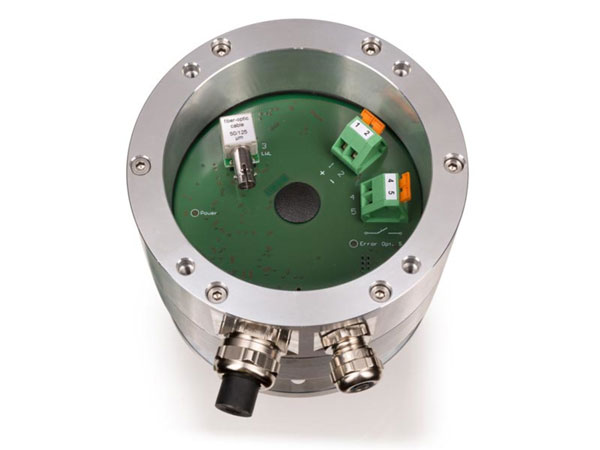

Embedded in a robust, thick-walled housing, the modern electronics of the optical encoders are characterized by electromagnetic compatibility (EMC).
With a variety of device and signal options, the optical encoders of the FG(HJ) 2 series can be adapted to the respective area of application and integrated into existing plc systems and mounting situations.
The optical encoders of the FG(HJ) 2 series can easily be mounted, connected and operated.
We look forward to your challenges.
