Supply voltage
12-30 VDC (5 VDC optional)
FGH 6
12-30 VDC (5 VDC optional)
HTL or TTL
512, 1000, 1024, 1200, 1800, 2000, 2048, 2500, 5000
0° track (others: see device options)
Hollow shaft: up to 4000 rpm (up to 1100 rpm with IP66) / max. 100 kHz
Hollow shaft: up to Ø 50 mm with feather key
-25 °C to +85 °C
up to IP66
up to 80 g
up to 10 g
approx. 6 kg
Take a look at our animations for the steel, crane and port technology, and mining sectors! Click through our animations from a rough overview to the specific mounting location of an encoder and get direct suggestions for suitable encoder solutions.
The optical rotary encoders FGH 6 with a through hollow shaft up to Ø 50 mm are ideally suited for speed measurement and speed monitoring under extreme ambient conditions. They are ideal for mounting locations with restricted space or with larger shaft eccentricity.
The incremental encoders are attached directly onto the application shaft or to the application shaft by using a suitable adapter flange.
With a large number of options and attachments available the optical rotary encoders are flexible in use.

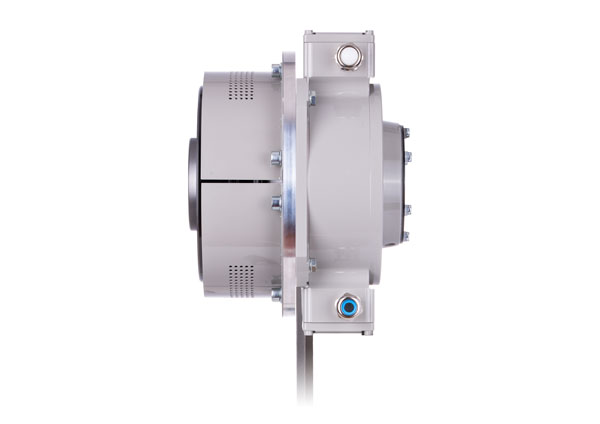

FGH 6: optical rotary encoders with hollow shaft up to 50 mm
The optical rotary encoders of the FGH 6 series have a long service life and offer a very high level of reliability – even under extreme ambient conditions.
The modern electronics of the optical rotary encoders are characterized by electromagnetic compatibility (EMC). It is embedded in an extremely robust, thick-walled housing.
The optical rotary encoders of the FGH 6 series offer a wide variety of device and signal options and can be supplemented by attaching further encoders.
The optical rotary encoders of the FGH 6 series are also suitable for mounting situations with limited space. Engineering support and suitable mechanical accessories ensure safe installation.
We look forward to your challenges.
